Order update table
Consider a strategy which puts all active orders in a table where the user can manually edit orders:
- stop loss price,
- take profit price,
- stop loss distance in pips from the current market price,
- take profit distance in pips from the current market price.

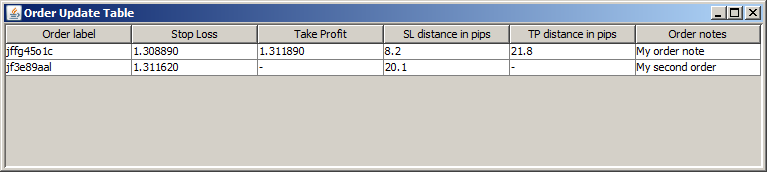

Besides that, the user can also add some custom notes to orders. The table when undocked looks as follows:
The strategy source code:
package jforex.guitests;
import java.awt.BorderLayout;
import java.math.BigDecimal;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.concurrent.Callable;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTable;
import javax.swing.SwingUtilities;
import javax.swing.table.AbstractTableModel;
import com.dukascopy.api.*;
/**
* The strategy demonstrates how one can create a customized table
* which allows the user both to modify orders and attach some customized
* data to them.
*
*/
public class OrderUpdateTableStrategy2 implements IStrategy {
private static final String TAB_NAME = "Order Update Table";
private IContext context;
private IUserInterface userInterface;
private OrderTableModel tableModel;
private JTable table;
private IEngine engine;
public IHistory history;
public void onStart(IContext context) throws JFException {
this.context = context;
this.engine = context.getEngine();
this.history = context.getHistory();
userInterface = context.getUserInterface();
placeControlsOnTab(context);
updateTable();
}
private void placeControlsOnTab(IContext context) {
JPanel mainPanel = userInterface.getBottomTab(TAB_NAME);
mainPanel.setLayout(new BorderLayout());
tableModel = new OrderTableModel();
table = new JTable(tableModel);
mainPanel.add(new JScrollPane(table), BorderLayout.CENTER);
}
private void updateTable() throws JFException {
try {
SwingUtilities.invokeAndWait(new Runnable() {
@Override
public void run() {
try {
tableModel.setData(engine.getOrders());
} catch (JFException e) {
e.printStackTrace();
}
}
});
} catch (Exception e) {
e.printStackTrace();
}
}
public double getLastPrice(Instrument instrument, boolean isLong){
try {
ITick tick = history.getLastTick(instrument);
return isLong ? tick.getAsk() : tick.getBid();
} catch (JFException e) {
e.printStackTrace();
}
return 0d;
}
public void onAccount(IAccount account) throws JFException {
}
public void onMessage(IMessage message) throws JFException {
if (message.getOrder() != null) {
updateTable();
}
}
public void onStop() throws JFException {
userInterface.removeBottomTab(TAB_NAME);
}
public void onTick(Instrument instrument, final ITick tick) throws JFException {
if(engine.getOrders(instrument).size() > 0){
updateTable();
}
}
public void onBar(Instrument instrument, Period period, IBar askBar, IBar bidBar) throws JFException {
}
private static double round(double amount, int decimalPlaces) {
return (new BigDecimal(amount)).setScale(decimalPlaces, BigDecimal.ROUND_HALF_UP).doubleValue();
}
//function delegates for order rows
private interface IOrderSet{
void setValue(IOrder order, Object value) throws JFException;
}
private interface IOrderGet {
String getValue(IOrder order);
}
//each order column has its name, value representation function and value update function
private class OrderColumn {
private final String name;
private final boolean editable;
private final IOrderGet orderGet;
private final IOrderSet orderSet;
private OrderColumn(String name, boolean editable, IOrderGet getValueFunc, IOrderSet onChangeFunc) {
this.name = name;
this.editable = editable;
this.orderGet = getValueFunc;
this.orderSet = onChangeFunc;
}
public String getName() {
return name;
}
public boolean isEditable(){
return editable;
}
public IOrderGet getOrderGet() {
return orderGet;
}
public IOrderSet getOrderSet() {
return orderSet;
}
}
@SuppressWarnings("serial")
private class OrderTableModel extends AbstractTableModel {
private Map<IOrder, String> orderNotes = new HashMap<IOrder, String>();
//define 6 order columns and their behavior
private final OrderColumn[] orderColumns = new OrderColumn[]{
new OrderColumn(
"Order label",
false, //can't edit label
new IOrderGet() {
@Override
public String getValue(IOrder order) {
return order.getLabel();
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{}
}
),
new OrderColumn(
"Stop Loss",
true,
new IOrderGet() {
@Override
public String getValue(IOrder order) {
return order.getStopLossPrice() == 0 ? "-" : String.format("%.6f",order.getStopLossPrice());
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{
order.setStopLossPrice(round(Double.valueOf(value.toString()),order.getInstrument().getPipScale() + 1));
}
}
),
new OrderColumn(
"Take Profit",
true,
new IOrderGet() {
@Override
public String getValue(IOrder order) {
return order.getTakeProfitPrice() == 0 ? "-" : String.format("%.6f",order.getTakeProfitPrice());
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{
order.setTakeProfitPrice(round(Double.valueOf(value.toString()),order.getInstrument().getPipScale() + 1));
}
}
),
new OrderColumn(
"SL distance in pips",
true,
new IOrderGet() {
@Override
public String getValue(IOrder order) {
if(order.getStopLossPrice() == 0){
return "-";
}
double lastPrice = OrderUpdateTableStrategy2.this.getLastPrice(order.getInstrument(), order.isLong());
return String.format("%.1f",Math.abs( lastPrice - order.getStopLossPrice()) / order.getInstrument().getPipValue());
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{
double lastPrice = OrderUpdateTableStrategy2.this.getLastPrice(order.getInstrument(), order.isLong());
double priceDelta = Double.valueOf(value.toString()) * order.getInstrument().getPipValue();
double price = order.isLong() ? lastPrice - priceDelta : lastPrice + priceDelta;
order.setStopLossPrice(round(price,order.getInstrument().getPipScale() + 1));
}
}
),
new OrderColumn(
"TP distance in pips",
true,
new IOrderGet() {
@Override
public String getValue(IOrder order) {
if(order.getTakeProfitPrice() == 0){
return "-";
}
double lastPrice = OrderUpdateTableStrategy2.this.getLastPrice(order.getInstrument(), order.isLong());
return String.format("%.1f", Math.abs(lastPrice - order.getTakeProfitPrice()) / order.getInstrument().getPipValue());
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{
double lastPrice = OrderUpdateTableStrategy2.this.getLastPrice(order.getInstrument(), order.isLong());
double priceDelta = Double.valueOf(value.toString()) * order.getInstrument().getPipValue();
double price = order.isLong() ? lastPrice + priceDelta : lastPrice - priceDelta;
order.setTakeProfitPrice(round(price,order.getInstrument().getPipScale() + 1));
}
}
),
new OrderColumn(
"Order notes",
true,
new IOrderGet() {
@Override
public String getValue(IOrder order) {
String note = orderNotes.get(order);
return note == null ? "" : note;
}
},
new IOrderSet() {
@Override
public void setValue(IOrder order, Object value) throws JFException{
orderNotes.put(order, value.toString());
}
}
)
};
private List<IOrder> orders;
public void setData(List<IOrder> orders) {
this.orders = orders;
fireTableDataChanged();
}
public int getRowCount() {
return orders.size();
}
public int getColumnCount() {
return orderColumns.length;
}
public Object getValueAt(int row, int column) {
IOrder order = orders.get(row);
return orderColumns[column].getOrderGet().getValue(order);
}
public boolean isCellEditable(int rowIndex, int columnIndex) {
return orderColumns[columnIndex].isEditable();
}
public void setValueAt(final Object aValue, int rowIndex, final int columnIndex) {
final IOrder order = orders.get(rowIndex);
//order operations need to be executed from the strategy thread
context.executeTask(new Callable<Object>() {
@Override
public Object call() throws Exception {
orderColumns[columnIndex].getOrderSet().setValue(order, aValue);
return null;
}
});
}
public String getColumnName(int column) {
return orderColumns[column].getName();
}
}
}
OrderUpdateTableStrategy2.java
