Line intersection
Short line intersection

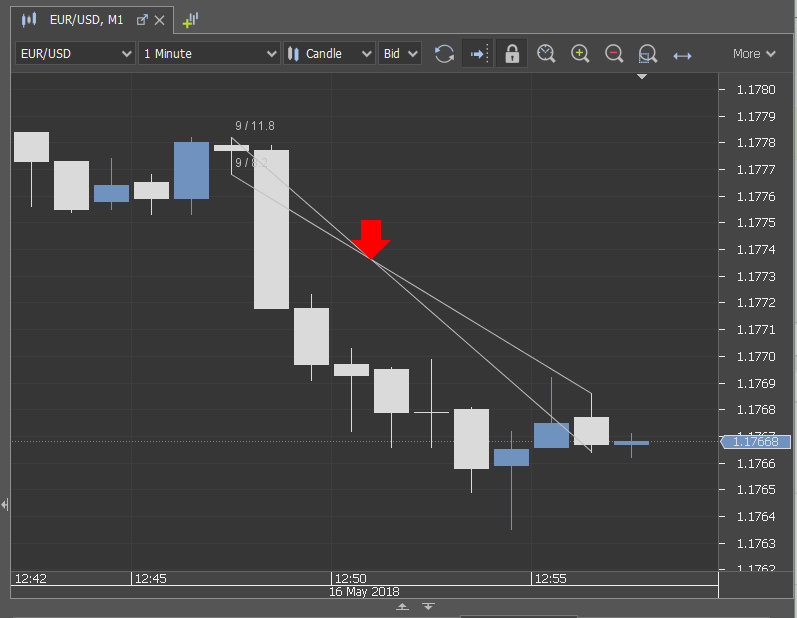

Consider a strategy which finds intersection point of two short lines and then plots a signal chart object on each of those intersections.
class PointDbl {
public final double x;
public final double y;
public PointDbl(double x, double y){
this.x = x;
this.y = y;
}
}
@Override
public void onStart(IContext context) throws JFException {
history = context.getHistory();
console = context.getConsole();
chart = context.getChart(instrument);
if(chart == null){
console.getErr().println("No chart opened, can't plot lines");
context.stop();
}
IBar bar1 = history.getBar(instrument, period, side, 1);
IBar bar10 = history.getBar(instrument, period, side, 10);
IShortLineChartObject line1 = chart.getChartObjectFactory().createShortLine("line1",
bar1.getTime(), bar1.getHigh(), bar10.getTime(), bar10.getLow()
);
IShortLineChartObject line2 = chart.getChartObjectFactory().createShortLine("line2",
bar1.getTime(), bar1.getLow(), bar10.getTime(), bar10.getHigh()
);
chart.add(line1);
chart.add(line2);
PointDbl point = intersection(
line1.getTime(0), line1.getPrice(0),
line1.getTime(1), line1.getPrice(1),
line2.getTime(0), line2.getPrice(0),
line2.getTime(1), line2.getPrice(1)
);
if(point == null){
console.getOut().println("Lines don't intersect");
} else {
console.getOut().println(String.format(
"Lines intersect at %s:%.5f ",DateUtils.format(point.x), point.y));
ISignalDownChartObject signalArr =
chart.getChartObjectFactory().createSignalDown(
"intersection_point",
(long)point.x + period.getInterval()/2, point.y);
signalArr.setStickToCandleTimeEnabled(false);
chart.add(signalArr);
}
}
public PointDbl intersection(
double x1, double y1, double x2, double y2,
double x3, double y3, double x4, double y4
) {
double d = (x1 - x2) * (y3 - y4) - (y1 - y2) * (x3 - x4);
if (d == 0)
return null;
double xi = ((x3 - x4) * (x1 * y2 - y1 * x2) - (x1 - x2) * (x3 * y4 - y3 * x4)) / d;
double yi = ((y3 - y4) * (x1 * y2 - y1 * x2) - (y1 - y2) * (x3 * y4 - y3 * x4)) / d;
return new PointDbl(xi, yi);
}
Indicator output line intersection

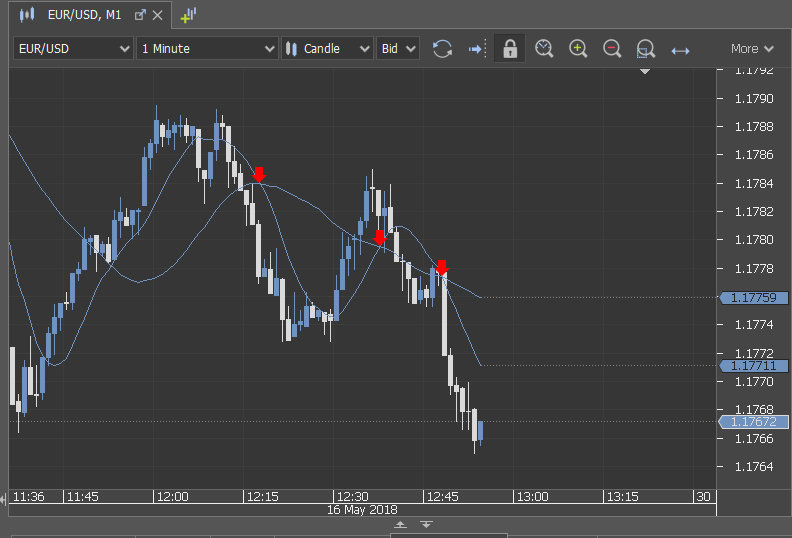

Consider a strategy which finds indicator two indicator output line intersection points by using a geometric method. It also plots a signal chart object on each of those intersections.
//..
@Override
public void onStart(IContext context) throws JFException {
history = context.getHistory();
console = context.getConsole();
indicators = context.getIndicators();
chart = context.getChart(instrument);
if(chart == null){
console.getErr().println("No chart opened, can't plot indicators.");
context.stop();
}
if(chart.getSelectedPeriod() != period || chart.getSelectedOfferSide() != side){
console.getErr().println("Chart feed does not match the one of indicators. Can't plot indicators.");
context.stop();
}
chart.add(indicators.getIndicator("SMA"), new Object [] {smaPeriod1});
chart.add(indicators.getIndicator("SMA"), new Object [] {smaPeriod2});
IBar bar = history.getBar(instrument, period, side, toShift);
double[] sma1 = indicators.sma(
instrument, period, side, AppliedPrice.CLOSE, smaPeriod1, chart.getFilter(),
fromShift, bar.getTime(), 0);
double[] sma2 = indicators.sma(
instrument, period, side, AppliedPrice.CLOSE, smaPeriod2, chart.getFilter(),
fromShift, bar.getTime(), 0);
IBar[] bars = history.getBars(
instrument, period, side, chart.getFilter(),
fromShift, bar.getTime(), 0).toArray(new IBar[] {});
for(int i=0; i< sma1.length - 1; i++){
PointDbl point = intersection(
bars[i].getTime(), sma1[i], bars[i+1].getTime(), sma1[i+1],
bars[i].getTime(), sma2[i], bars[i+1].getTime(), sma2[i+1]
);
long intersectTime = (long)point.x;
if(point == null || intersectTime < bars[i].getTime() || intersectTime > bars[i+1].getTime()){
console.getOut().println(
"Lines don't intersect between " +
DateUtils.format(bars[i].getTime()) + " and " +
DateUtils.format(bars[i+1].getTime()));
} else {
console.getOut().println(String.format(
"Lines intersect at %s:%.5f ",
DateUtils.format(point.x), point.y));
ISignalDownChartObject signalArr =
chart.getChartObjectFactory().createSignalDown(
"intersection_point"+i, (long)point.x + period.getInterval()/2, point.y);
signalArr.setStickToCandleTimeEnabled(false);
chart.add(signalArr);
}
}
}
//..
