What is a MACD in trading?
The name itself gives you a useful clue. MACD stands for Moving Average Convergence/Divergence. "Convergence" means coming together, and "divergence" means moving apart. The indicator watches two moving averages and tracks whether they are getting closer to each other or drifting further apart – and what that tells us about the strength of price momentum.
Gerald Appel, an American analyst, created this indicator in the late 1970s. Since then, it has become a standard feature on almost every trading platform in the world, used across forex, stocks, commodities, and other financial markets.
So what is momentum, and why does it matter? Think of momentum like the force behind a moving ball. A ball rolling downhill with great speed has strong momentum. If it starts slowing down near the bottom, the momentum is weakening – and it may stop or change direction soon. In trading, momentum refers to the strength and speed behind price movement. A currency pair may be rising, but if the force behind that rise is weakening, the move may not last much longer. MACD helps you see this.

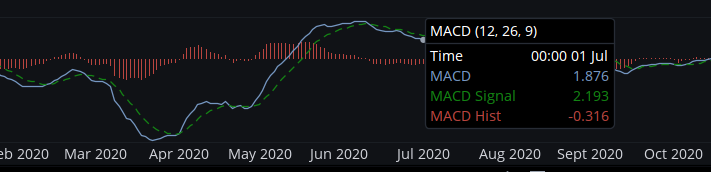

The Three Parts of the MACD Indicator
Once you apply MACD to your chart, it shows up in a separate section beneath the main price area. At first glance, it might look like a bunch of lines and bars – but each element has a specific purpose. There are three parts to pay attention to:
The MACD Line (MACD)
This is the centerpiece of the whole indicator. To create it, the platform takes a 12-period EMA and subtracts a 26-period EMA from it. Now, an exponential moving average is simply a way of calculating the average price over a set number of periods – except it puts more emphasis on recent prices rather than treating all periods equally. This makes it quicker to respond when market conditions start shifting. When the 12-period EMA climbs above the 26-period EMA, the MACD line moves above the zero mark, reflecting growing bullish momentum. When it drops below, momentum has turned to the downside.
The Signal Line (MACD Signal)
Think of this as a calmer, more patient version of the MACD line. It is derived by applying a 9-period EMA directly to the MACD line, which smooths out the short-term fluctuations and produces a slower-moving result. This slower pace is actually what makes it useful – when the quicker MACD line cuts through it from below or above, that crossing moment is considered a potential trading signal, which is why these events are commonly referred to as crossover signals.
The Histogram (MACD Hist)
The histogram is the series of vertical bars sitting in the background of the indicator panel. Each bar shows the current gap between the MACD line and the Signal line – nothing more, nothing less. When those bars are growing in size, it tells you the two lines are moving further apart, which reflects strengthening momentum. When the bars begin shrinking, the lines are coming back toward each other, and momentum is starting to fade. What makes this particularly useful is timing – the histogram often starts contracting before the actual crossover happens, giving you an early indication that conditions may be about to change.
How to use a MACD indicator
There are three main types of signals that MACD produces, and each one tells you something slightly different.

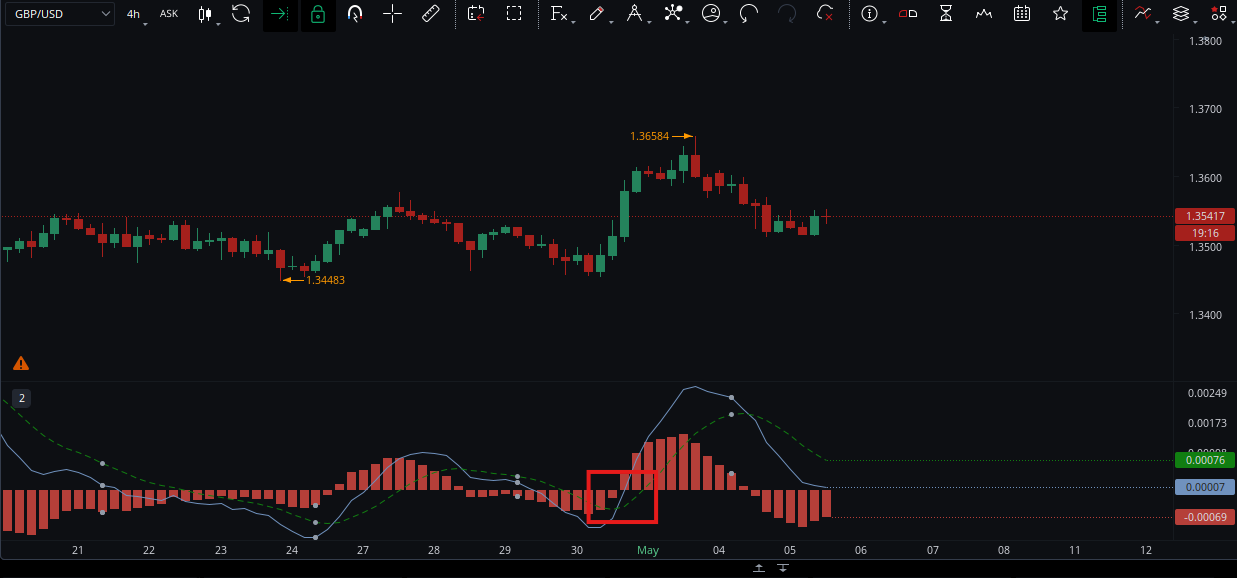

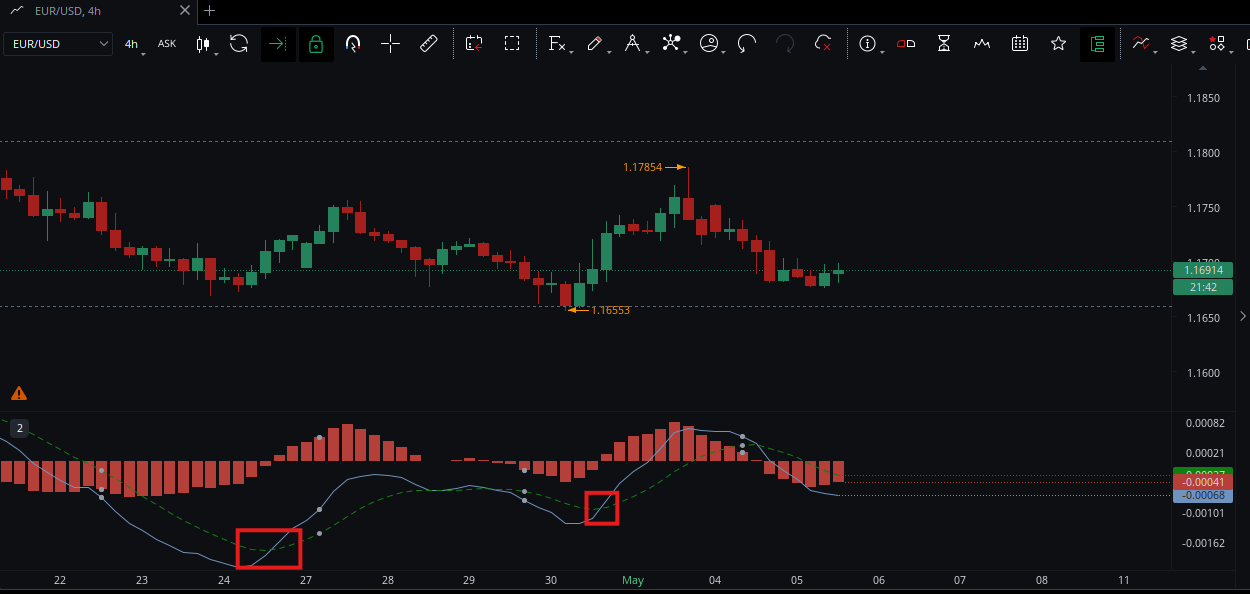

Signal Line Crossovers
This is the most common method traders use. When the MACD line crosses upward through the Signal line, it suggests that upward momentum is strengthening. Many traders interpret this as a possible buying opportunity. When the MACD line crosses downward through the Signal line, momentum is shifting in the opposite direction, which is often read as a signal to sell or close an existing buy trade.
One important detail: crossovers that happen far away from the zero line tend to be more meaningful than those occurring right near it. A crossover that takes place well below zero, turning upward, may indicate a stronger recovery in buying pressure. A crossover near zero may simply be the indicator fluctuating without much conviction.
Zero Line Crossovers
When the MACD line moves from below zero to above it, the short-term moving average has overtaken the longer-term one. This tells you that recent price momentum has become genuinely bullish. The reverse is also true – when MACD crosses below zero, short-term momentum has fallen behind the longer-term average, confirming bearish direction. Zero line crossovers are slower to develop than signal line crossovers, but they carry more confirmation value because they reflect a clearer shift in the overall trend.
The Histogram as an Early Signal
Rather than waiting for a full crossover, experienced traders also watch the histogram bars. If the bars have been growing for a while and then begin to shrink, momentum may be fading – even if the price has not yet reversed. This can give you a small but useful head start when preparing for a potential change in direction. The risk is that you are acting on an early sign rather than full confirmation, so it is wise to look for additional evidence before making a trading decision based on the histogram alone.

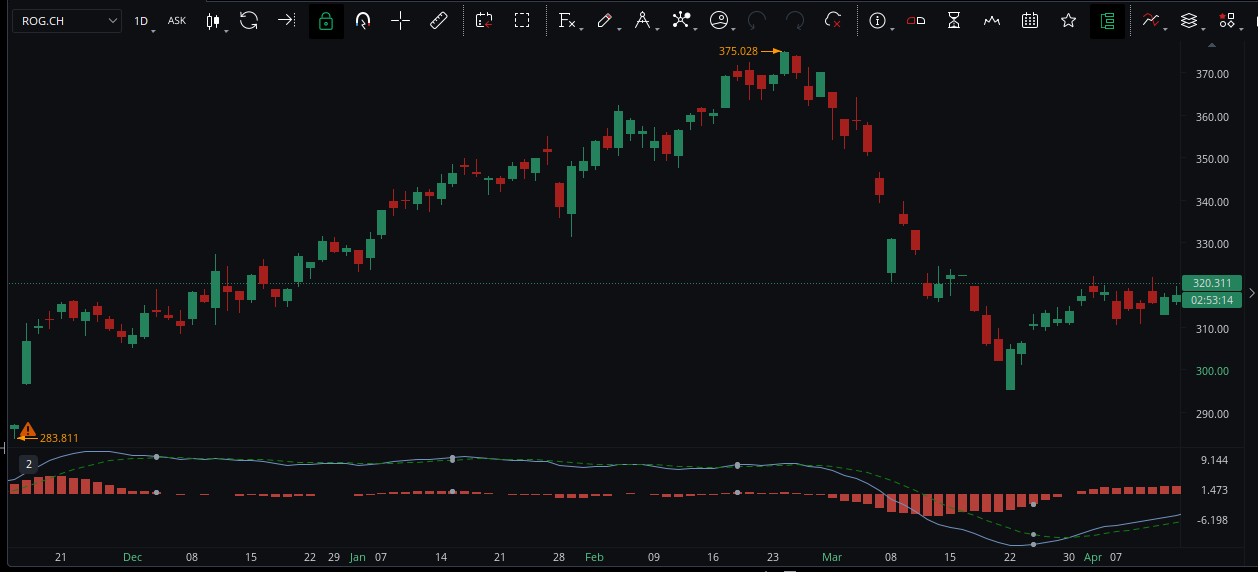

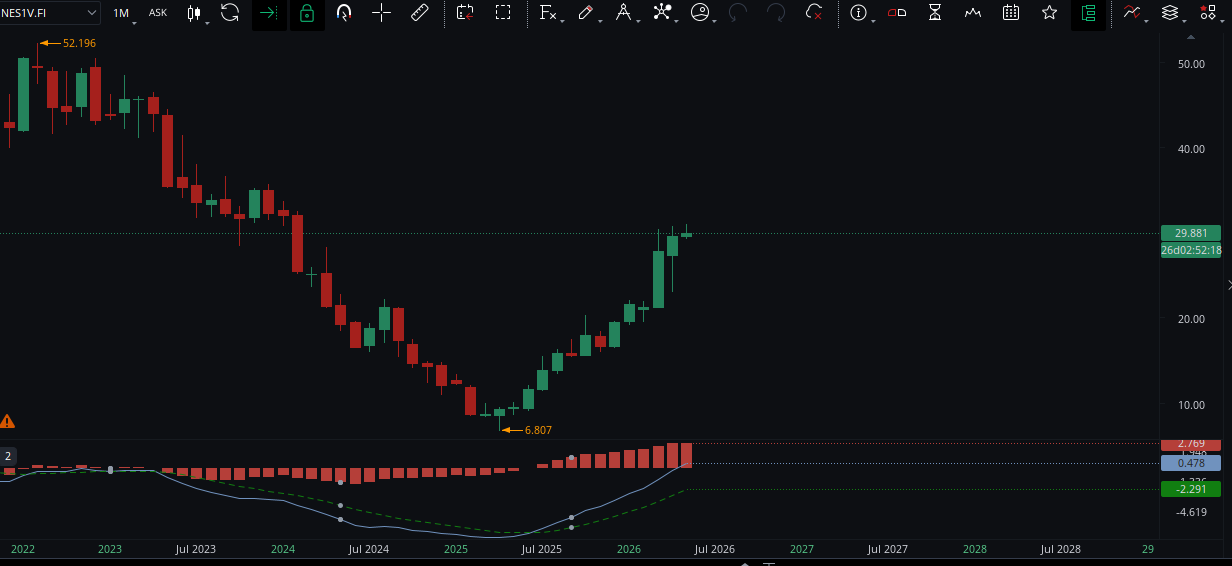

The MACD and divergence
Divergence occurs when the price of a currency pair and the MACD indicator move in opposite directions.
Bullish divergence happens when price makes a lower low but the MACD makes a higher low. This tells you that even though the price fell further, selling pressure is actually weakening. The bears are losing conviction. In many cases, this pattern precedes a meaningful price recovery, and it might be very useful when you are looking for a good entry point in a downtrend that may be losing steam.
Bearish divergence is the opposite. Price makes a higher high while the MACD makes a lower high. Buyers are pushing prices up, but momentum data shows the buying pressure is thin. This is often seen near market tops and can warn of a coming decline.
One important point to note is that divergence acts as a warning rather than an immediate action signal. The price can continue in the existing direction for some time before reversing. Many experienced traders wait to see if a MACD crossover occurs after spotting divergence, using the divergence to provide context and the crossover as the trigger for entering a trade.
MACD trading strategies
There are plenty of trading strategies based around MACD. Here are three of the most commonly used ones.
Strategy 1: The Simple Crossover
This is the beginner-friendly starting point. The rule is straightforward: when the MACD line crosses above the signal line, consider buying. When it crosses below, consider selling or closing a long trade. That is the whole strategy in its most basic form.
To improve reliability, add a simple filter: only take buy signals when the price is above its 200-period moving average (indicating an upward trend), and only take sell signals when the price is below the average. This extra step eliminates a significant number of false signals.
Strategy 2: Reading the Histogram Early
Instead of waiting for the two lines to cross, watch the histogram. When the bars start getting shorter after being tall and positive, consider that an early warning to prepare for a possible sell signal. When negative bars start shrinking, it may be time to watch for a buy opportunity. This gets you into trades a little earlier but also carries slightly more risk, since you are acting before full confirmation.
Strategy 3: Trading After Divergence
This strategy combines two ideas you already know. First, spot a divergence between price and the MACD. Then, wait patiently for a crossover to confirm that momentum has actually changed. Only enter the trade once both signals agree. This takes more patience, but the trades it produces tend to be more reliable because two things have to align before you act.
Strategy 4: Combining MACD with Support and Resistance
Support is a price level where buying has historically been strong – a floor, in simple terms. Resistance is a ceiling where selling has been strong. If the price pulls back to a known support level and the MACD gives a bullish crossover at the same time, you have two reasons to consider buying rather than just one. When multiple tools agree, the signal is stronger. This is one of the most practical and widely used approaches among forex traders at all levels.
MACD Formula
Although most traders do not perform the MACD calculation manually, it uses the following steps:
| STEP 1 – MACD Line | STEP 2 – Signal Line | STEP 3 – Histogram |
|---|---|---|
| MACD Line = 12-Period EMA minus 26-Period EMA → "How far is the fast average ahead of or behind the slow one?" | Signal Line = 9-Period EMA of the MACD Line → "A smoothed version of the MACD line to compare against" | Histogram = MACD Line minus Signal Line → "How far apart are the two lines right now?" |
The default settings (12, 26, 9) are the most widely used, but they are not fixed rules. Some traders working on shorter timeframes adjust these to (8, 17, 9) for greater sensitivity. Others using longer-term charts may use (19, 39, 9) to reduce noise. Changing the settings changes how reactive the indicator is – faster settings produce more signals but also more false ones.
MACD vs. Relative Strength
Both MACD and RSI are momentum-focused trading indicators, yet they approach the market from different angles.
RSI measures the speed and scale of recent price movement, producing a value between 0 and 100. A reading above 70 traditionally signals that an asset may be overbought; below 30 suggests it may be oversold. In practical terms, RSI is most valuable for recognizing when a price move has become overextended and a correction may be approaching.
MACD operates differently. It carries no fixed overbought or oversold thresholds. Instead, it monitors the relationship between two moving averages to determine the direction and strength of momentum – not whether price has traveled too far, but where it appears to be heading and with how much conviction.
This is precisely why the two indicators complement each other rather than duplicate each other. RSI answers the question of whether a market is stretched; MACD answers the question of whether momentum supports a continuation or a change in direction. When both align – for instance, a bullish MACD crossover coinciding with RSI recovering from oversold levels – the combined signal carries considerably more weight than either would in isolation. Used together, they offer a more complete and balanced view of market conditions than either can provide alone.
Conclusion
MACD has earned its place as one of the most widely used trading indicators for a straightforward reason – it works. By combining trend-following logic with momentum analysis in a single display, it gives traders a practical way to identify when market conditions are shifting and where potential opportunities may be forming.
That said, treating it as a complete system on its own would be a mistake. MACD performs best when supported by complementary tools – RSI, volume data, and well-defined support and resistance levels all add layers of context that the indicator alone cannot provide. And like any skill, reading MACD well takes time. Signals that look obvious on a historical chart can feel far less certain when you are watching them develop in real time, under pressure.
For anyone just starting out, a forex demo account is the most sensible place to begin. Observe how MACD behaves across different currency pairs and timeframes, in trending markets and directionless ones, during volatile sessions and quiet ones. There is no shortcut to that kind of experience – but building it without risking real capital is entirely possible, and well worth doing before you do.
